Application scenario of centrifugal cast steel sleeve for cold rolling mill tested by dynamic balance test

1. Core functions

Roll support: As a supporting liner for work rolls/intermediate rolls, it can withstand radial loads (500-1500MPa contact stress)

Dynamic balance: Maintain vibration velocity ≤ 1.8mm/s at rolling speed ≥ 25m/s (ISO 10816-3 standard)

Wear protection: prevent direct friction between the rolling mill and the bearing seat (reduce micro motion wear by more than 60%)

2. Typical working conditions

Mechanical load:

Cyclic bending stress (stress amplitude Δσ ≥ 300MPa, number of cycles>10 ⁷)

Instantaneous impact (impact acceleration>10g when changing rollers)

Environmental conditions:

Rolling oil penetration (viscosity ISO VG 68)

Wear of metal grinding particles (hardness HV600-800)

Material selection and optimization of centrifugal cast steel sleeve for CrMoV cold rolling mill

1. CrMoV alloy design

Range of Element Content (wt%) Functional Function

Cr 1.2-1.8 improves hardenability and corrosion resistance

Mo 0.3-0.6 suppresses temper brittleness and high temperature strength

V 0.1-0.3 refined grain size (MC type carbide)

2. Material properties

Tensile strength: ≥ 1100MPa (quenched and tempered state)

Fracture toughness: KIC≥90MPa·√m

Thermal fatigue performance: Crack length ≤ 0.3mm after 500 thermal cycles (200-400 ℃)

3. Strengthen the plan

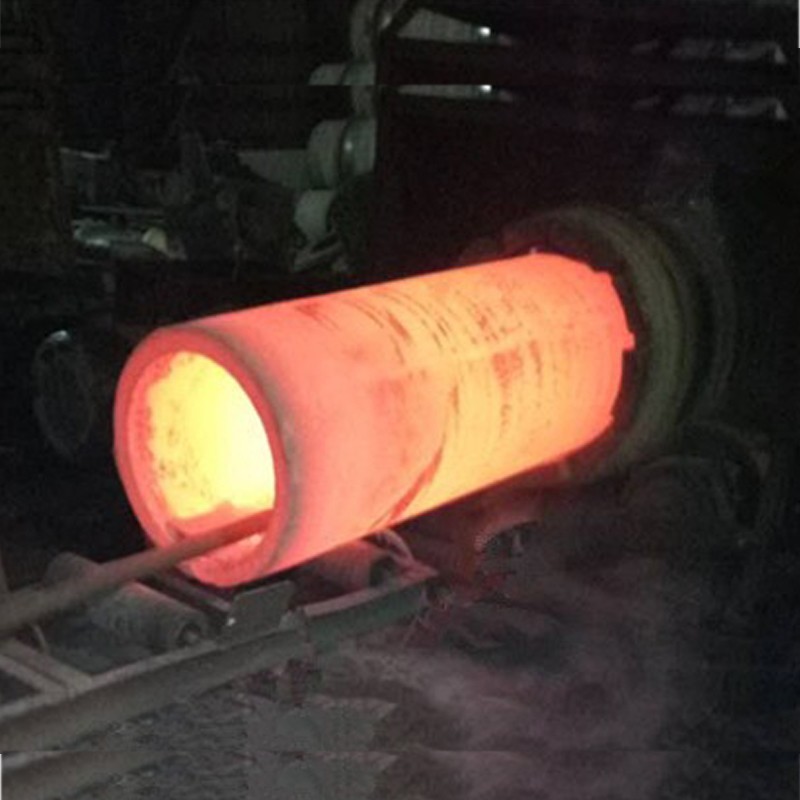

Optimization of centrifugal casting structure:

External surface cooling layer (dendrite spacing ≤ 30 μ m)

The proportion of equiaxed crystals in the transition zone is ≥ 40%

Composite surface treatment:

Inner hole: hard chrome plating (50 μ m)+micro polishing (Ra ≤ 0.05 μ m)

Outer circle: Supersonic flame spraying (HVOF) WC-10Co4Cr (porosity<0.5%)

Dynamic balance correction

Unbalance detection:

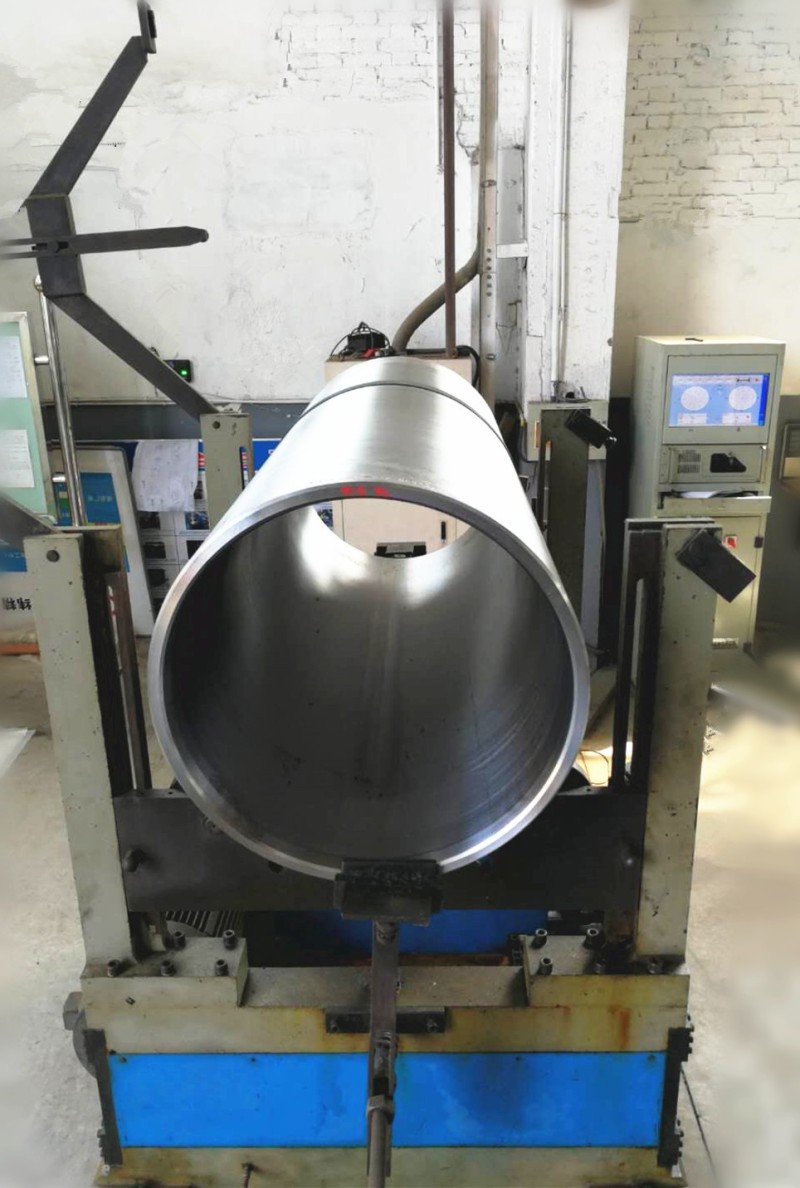

Using phase analysis dynamic balancing machine (accuracy 0.01g · mm/kg)

Correction method:

Laser precise weight removal (depth control ± 0.05mm)

High speed verification (1.5 times working speed, G0.4 level)

4. Heat treatment system

Quenching and tempering treatment:

Quenching: 890 ℃ × 2h (polymer quenching liquid cooling)

Tempering: 560 ℃ × 4h (two rounds of tempering)

Stabilization treatment:

Cold treatment (-80 ℃ × 8h)

Timeframe (180 ℃ × 12h)

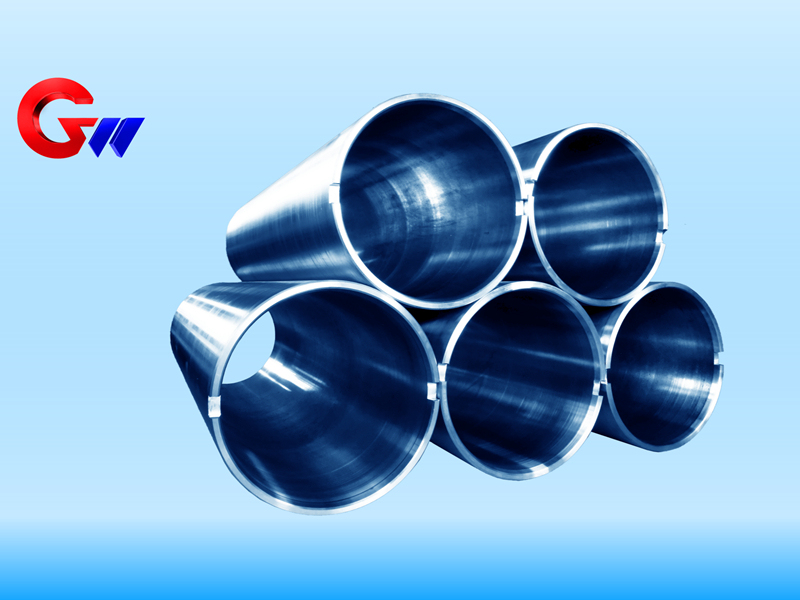

The Steel Spool material is CrMoV, and the specification is 465*405*1000.
